EG4 Solar Air Conditioner Heat Pump | 24000 BTU | Direct Solar Input
Questions about this product
Questions about this product
How many panels can I run and how should I size the array?
Most installs use about 1.6–2.4 kW of PV. In practice, that’s typically 4–5 panels at 400–450 W
What PV input limits should I follow?
Operating window 90–380 VDC. Max PV open-circuit voltage 380 V. Max PV short-circuit current 12 A. Rated PV wattage for the 24k model is 2200 W.
What is it and does it have a built-in charge controller?
It’s a hybrid AC/DC mini-split that accepts DC directly from solar panels and can blend or fall back to AC power. The outdoor unit has the PV controller built in, so you do not need a separate charge controller or inverter for daytime solar operation.
What is the operating temperature range?
Outdoor temps: Cooling 0–55°C. Heating −20–30°C. Indoor room operating range: Cooling 16–32°C. Heating 0–32°C. Performance is best within these ranges.
Can it run solar-only, and what AC power does it accept?
Yes. It can run solar-only during the day. Minimum PV to start is 90 VDC. For backup or night use, the 24k model takes 208–240 VAC and includes an AC-power-limiter feature to cap utility or generator draw.
Delivery and shipping
Delivery and shipping
Orders are typically processed within 1 to 2 business days from the time of purchase, excluding holidays and weekends.
Shipping times and cost will vary depending on the product and your location.
On average:
Ontario and Quebec: 2 to 5 business days
Western Canada: 4 to 7 business days
Atlantic provinces: 4 to 8 business days
Northern or remote areas: Contact us to confirm
Customer Reviews

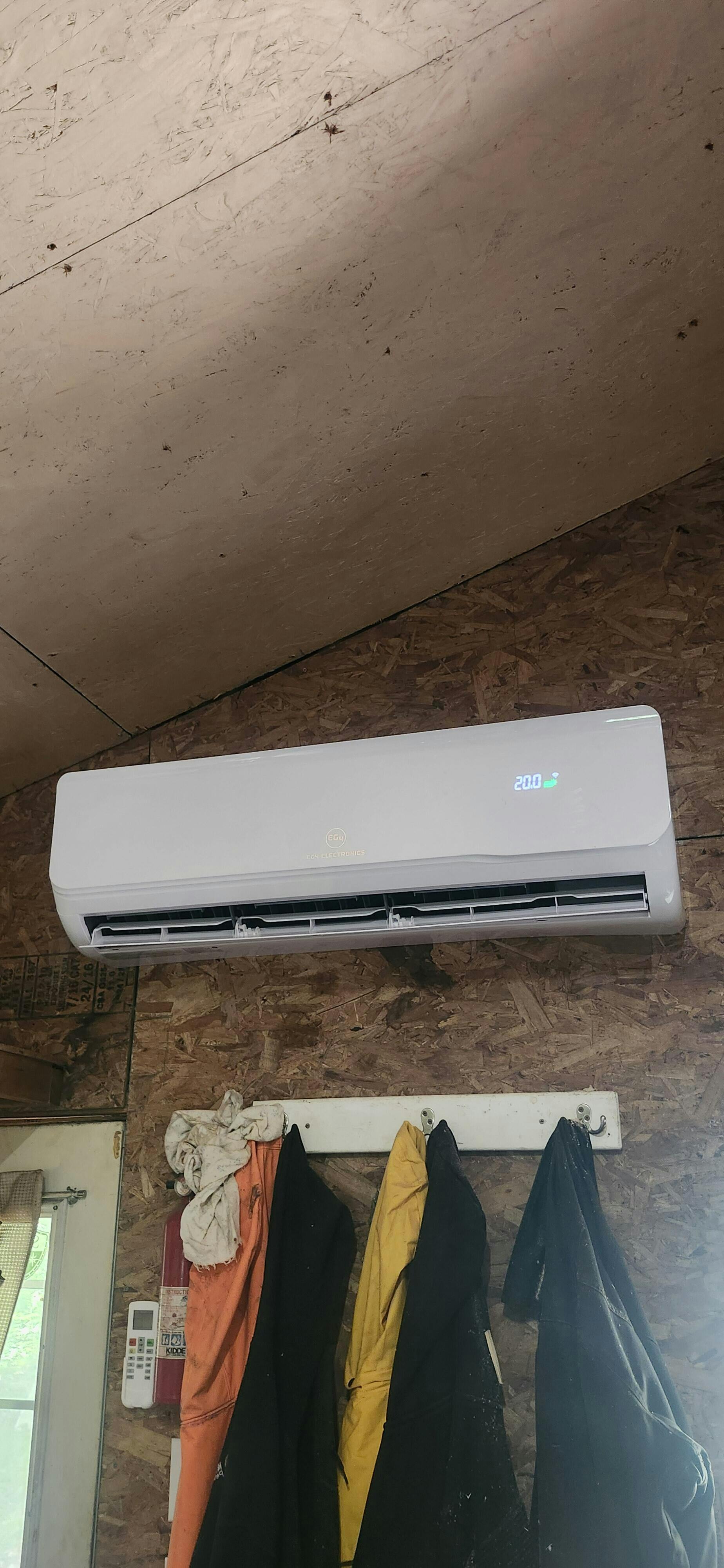

Works as good as the unit that run on the main grid
Great unit, very efficient and the service from Ryan is outstanding. Another great purchase.
EG4 Solar Air Conditioner Heat Pump | 24000 BTU | Direct Solar Input

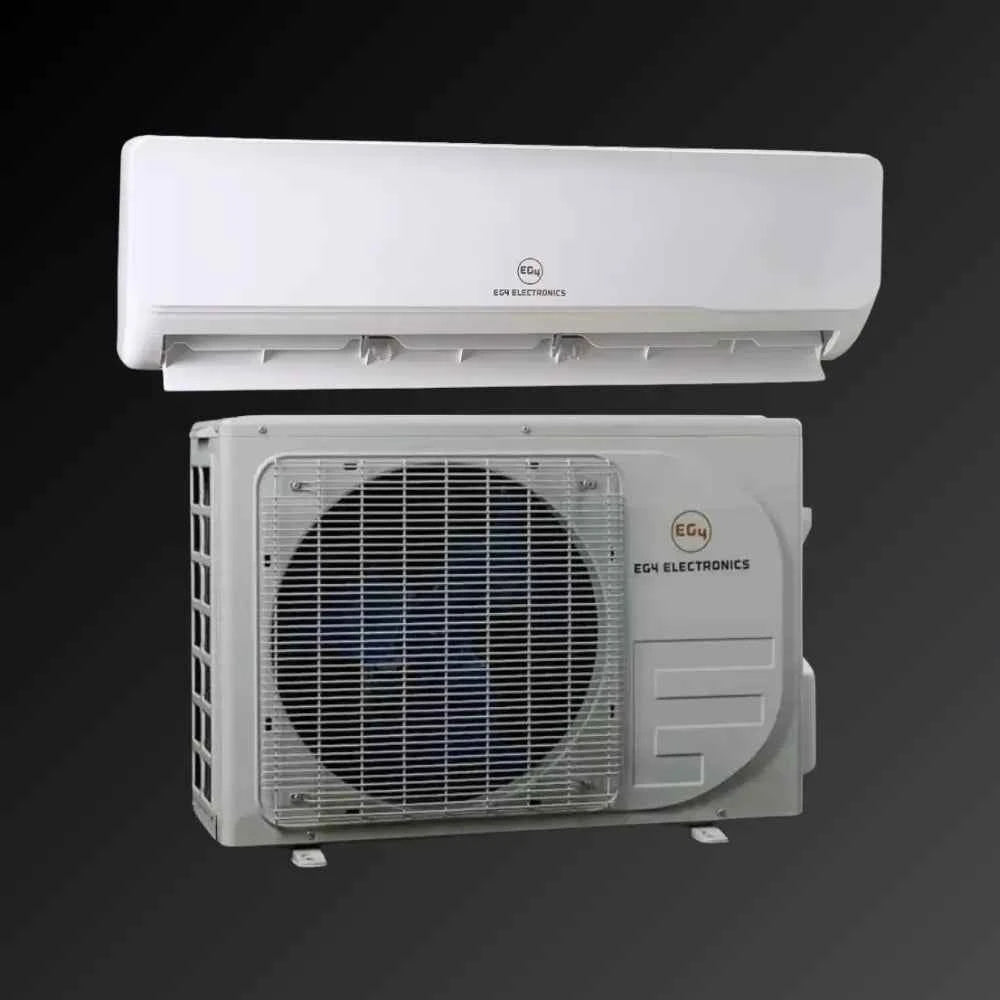

The EG4 Solar AC is one of the most innovative ductless heat pump/air conditioners available; reduce your electric bill and keep your home the temperature you want with this energy-efficient appliance. Featuring the ability to plug directly into solar panels, this system accepts DC power from their PV array without the need for an intermediary device during the day or can draw AC power from the grid at night or during overcast days. Users of the EG4 Solar AC can save money when compared to conventional central air conditioning systems. Pair this unit with a small string of solar panels to immediately begin heating and cooling your property today!

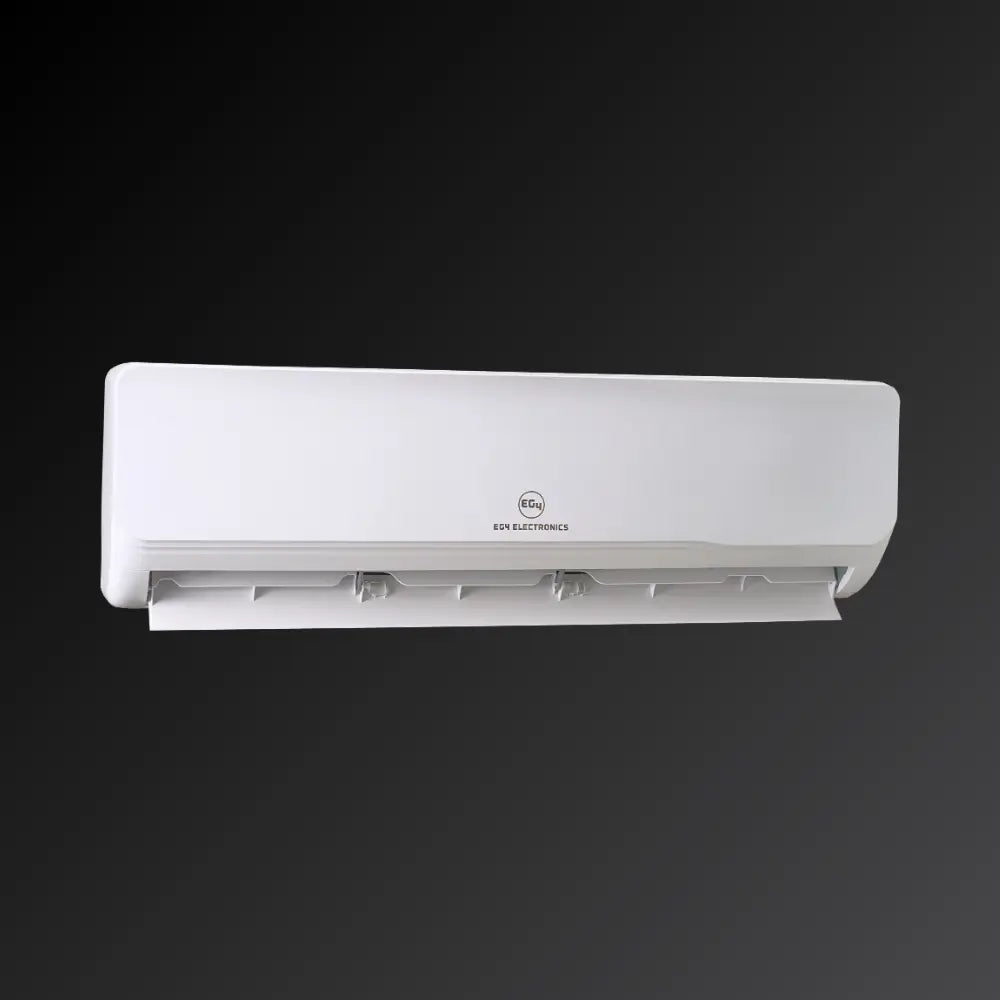

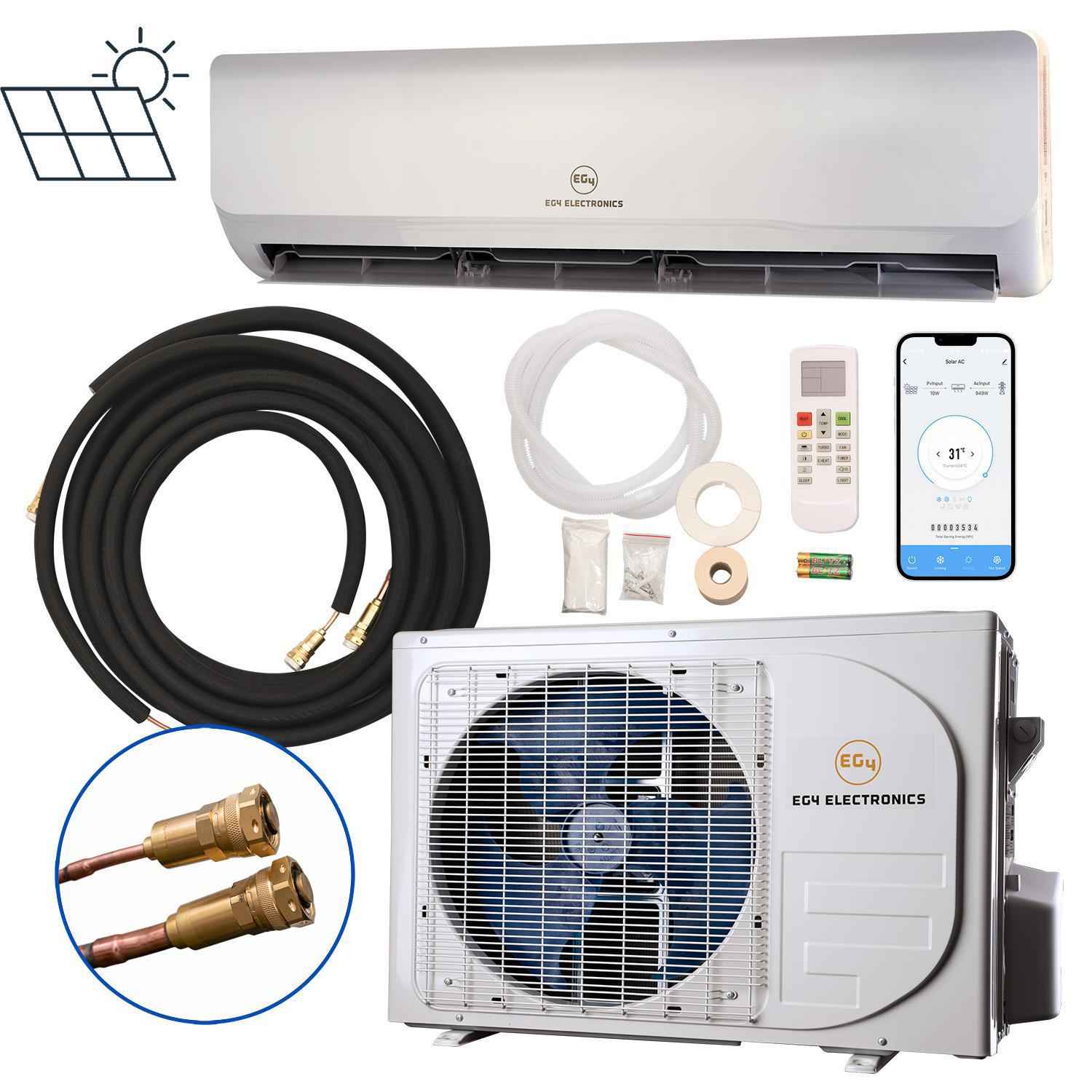

*This purchase includes an outdoor unit with refrigerant pre-loaded, one wifi-ready indoor unit, one LCD remote control, and an installation kit.*
No batteries required
Features
- Hybrid - AC/DC Driven
- Power from the grid or PV array - No inverter, battery, or charge controller necessary!
- 240v AC for backup power, but it is not required to run the unit.
- 100% energy saving in the daytime.
- Daytime power comes directly from solar.
- Plug and Play
- MC4 Connectors attach directly to PV wire.
- AC grid power limiter
- Limit AC power from 0-600W
- AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)

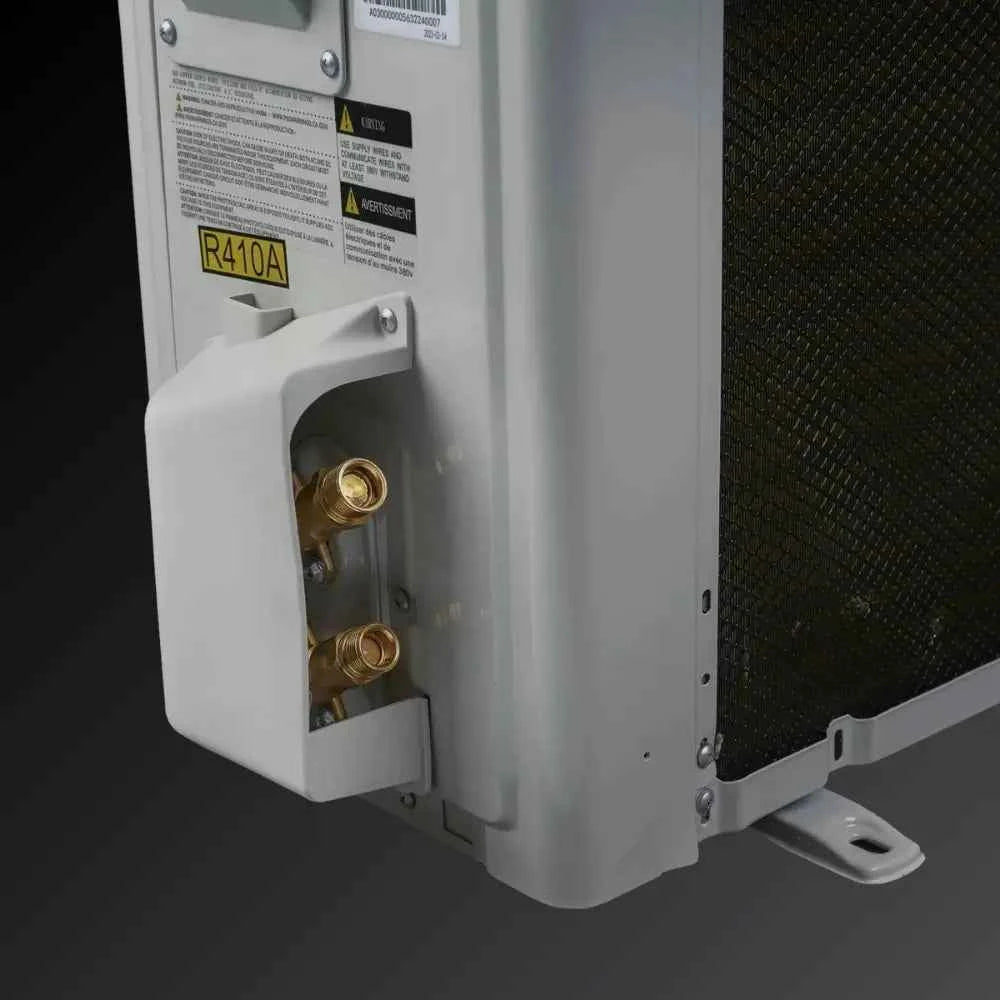

- Refrigerant Pre-Loaded(Self-contained in outdoor unit, please see installation manual for commissioning)
- Wide operating temperature (-10℃ to 58 ℃)
- Highly Efficient
- Perfect for off-grid, solar, or energy-efficient projects!
