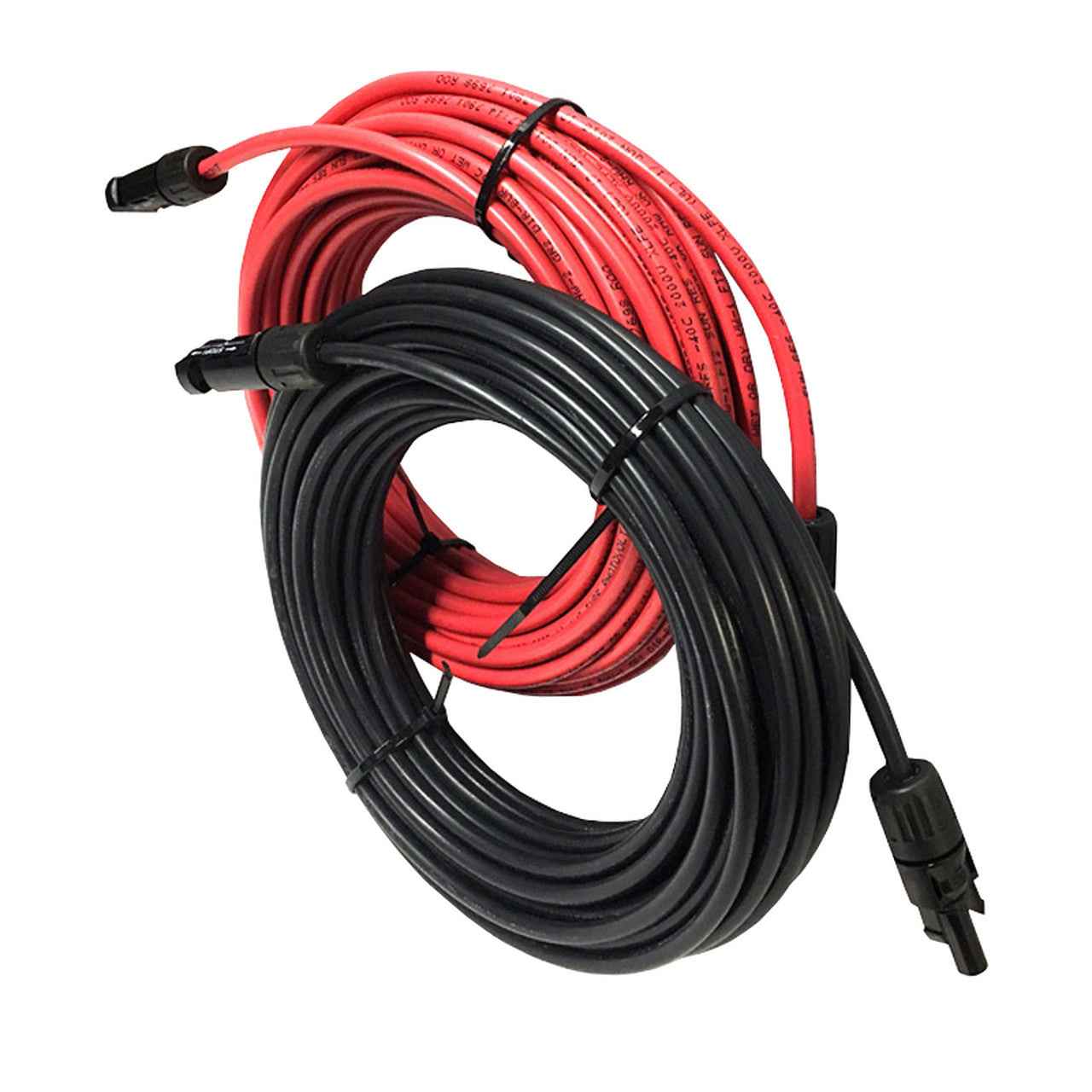

Solar PV 10 AWG Black

Cut and made to length Per Foot. MC4 connectors can be added.

SOUTHWIRE (M) LL90458 CSA 10 AWG (5.26mm2) CU XLPE RPVU90 1000V / 2000V -40°C SR DIR BUR —RoHS MONTH/YEAR OF MFG SEQUENTIAL FOOTAGE MARK

Features

• Rated 90°C wet and dry
• Rated for direct burial
• Stranded copper, flexible, 19 strands
• XLPE insulation
• Deformation-resistant at high temperatures
• Excellent moisture resistance, exceeds UL 44
• Stable electrical properties over a broad temperature range
• Excellent resistance to crush and compression cuts
• Resistant to most oils and chemicals
• UV/sunlight resistant
• Meets cold bend and cold impact tests at -40°C

Industry Compliances

• CSA C22.2 No. 38 – Thermoset-Insulated Wires and Cables
• CSA SUN RES – for Sunlight Resistant rating
• CSA C22.2 No. 271-11
• ASTM B3, B8, B787
• RoHS Compliant
