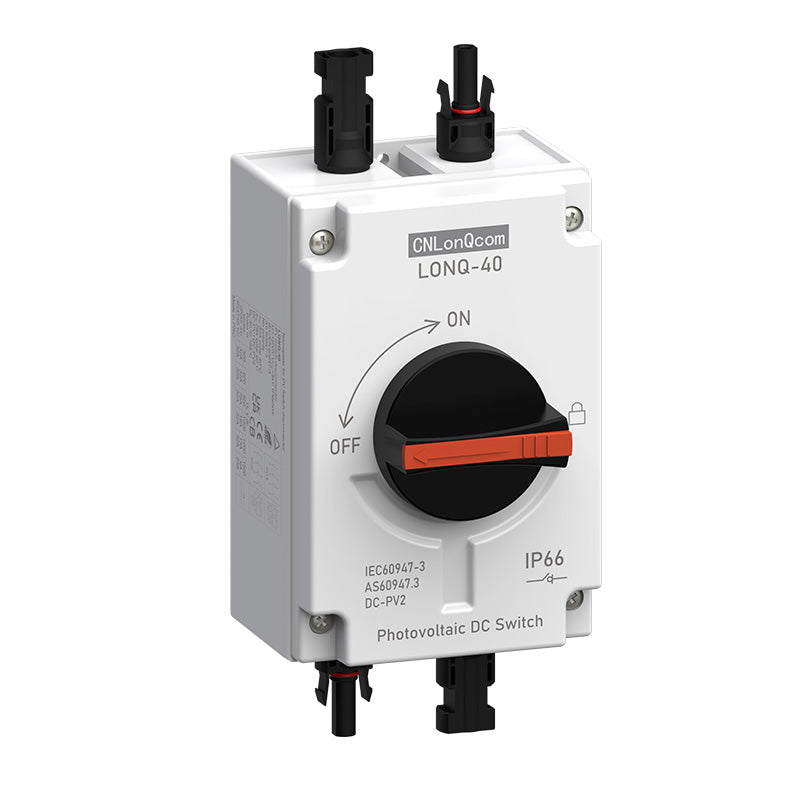

PV Solar Disconnect Switch - DC 1200 V 32 A

Regular price $9500
Shipping calculated at checkout.

Questions about this product

Delivery and shipping

Orders are typically processed within 1 to 2 business days from the time of purchase, excluding holidays and weekends.

Shipping times and cost will vary depending on the product and your location.

On average:

Ontario and Quebec: 2 to 5 business days

Western Canada: 4 to 7 business days

Atlantic provinces: 4 to 8 business days

Northern or remote areas: Contact us to confirm

✔︎ Available to ship
Most items ship from our supplier within 2 business days. Additional delivery time may apply depending on your location.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Keep your solar or wind system safe with this compact, weather-sealed DC isolator. Rated for up to 1, 200 V DC and 32 A, it cleanly disconnects a single PV string in homes, RVs, cottages, boats, and remote installs.



Features

  • Rated 1200 V DC / 32 A for high-voltage PV strings

  • 1 in / 1 out design with no-polarity wiring (top or bottom entry)

  • IP66 polycarbonate enclosure – fully waterproof and dust-tight

  • Quick-action rotary handle: OFF at 9 o’clock, ON at 12 o’clock

  • Wide −40 °C to +85 °C operating range

  • 20 000 mechanical & 6 000 electrical cycles for long life

  • Certified to IEC / EN 60947-3 and carries CE, TUV, CB, UKCA, ROHS approvals

  • Wall-mount bracket included for fast installation



Specifications

Parameter

Value

Model

LONQ40-MC4

Poles

2

Rated working voltage (Ue)

300 – 1 200 V DC (see current table)

Rated current (In)

32 A (300 – 800 V), 25 A @ 1 000 V, 16 A @ 1 200 V

Rated insulation voltage (Ui)

1 500 V

Impulse withstand voltage (Uimp)

8 kV

Short-time withstand (Icw)

1 kA

Protection class

IP66

Operating temperature

−40 °C to +85 °C

Humidity

≤ 95 % RH

Altitude

≤ 2 000 m

Housing

UV-resistant PC

Conductor material

Copper

Dimensions (L × W × H)

230 × 104 × 110 mm

Weight

0.709 kg (0.75 kg boxed)

Certifications

CE, TUV, CB, UKCA, ROHS, ISO 9001
