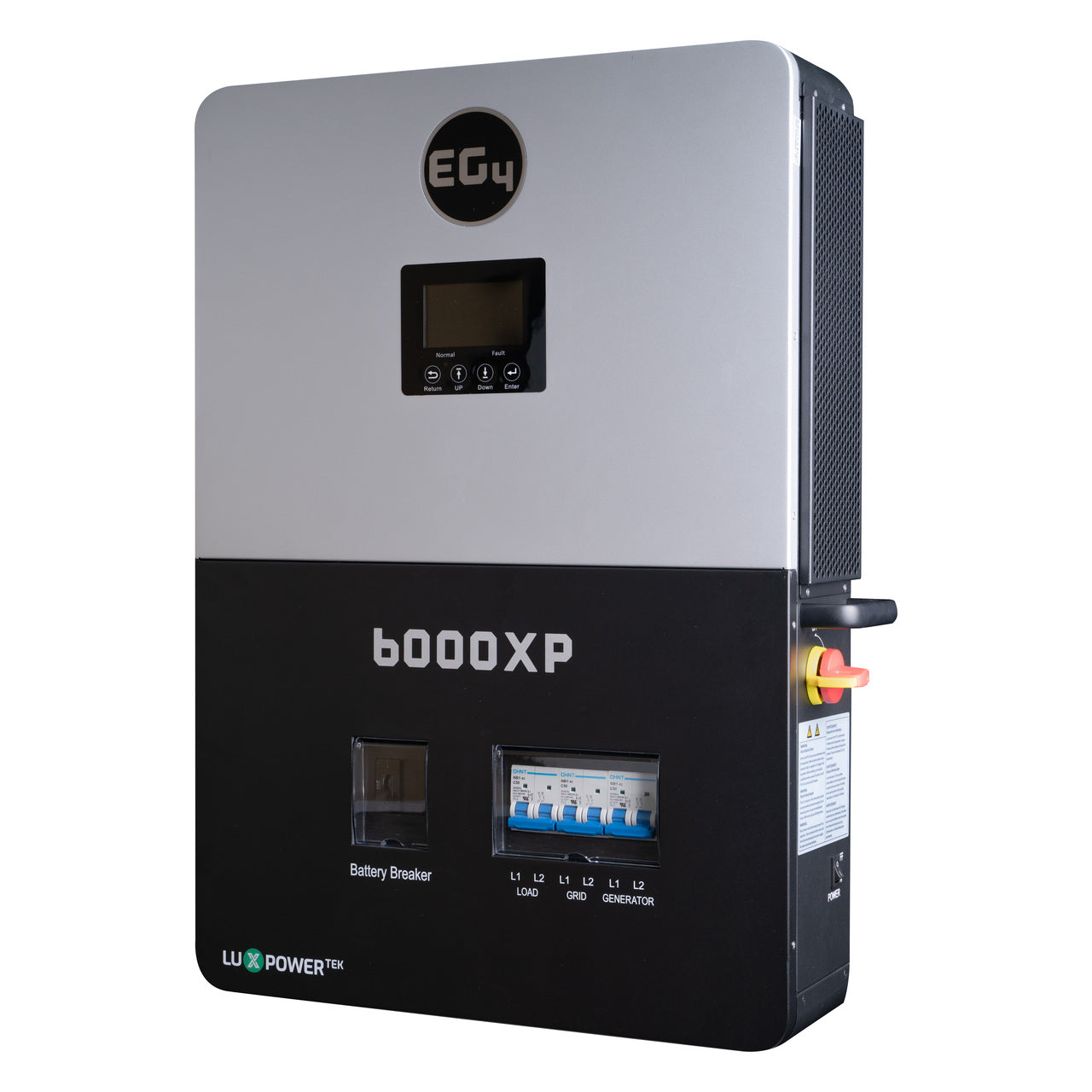

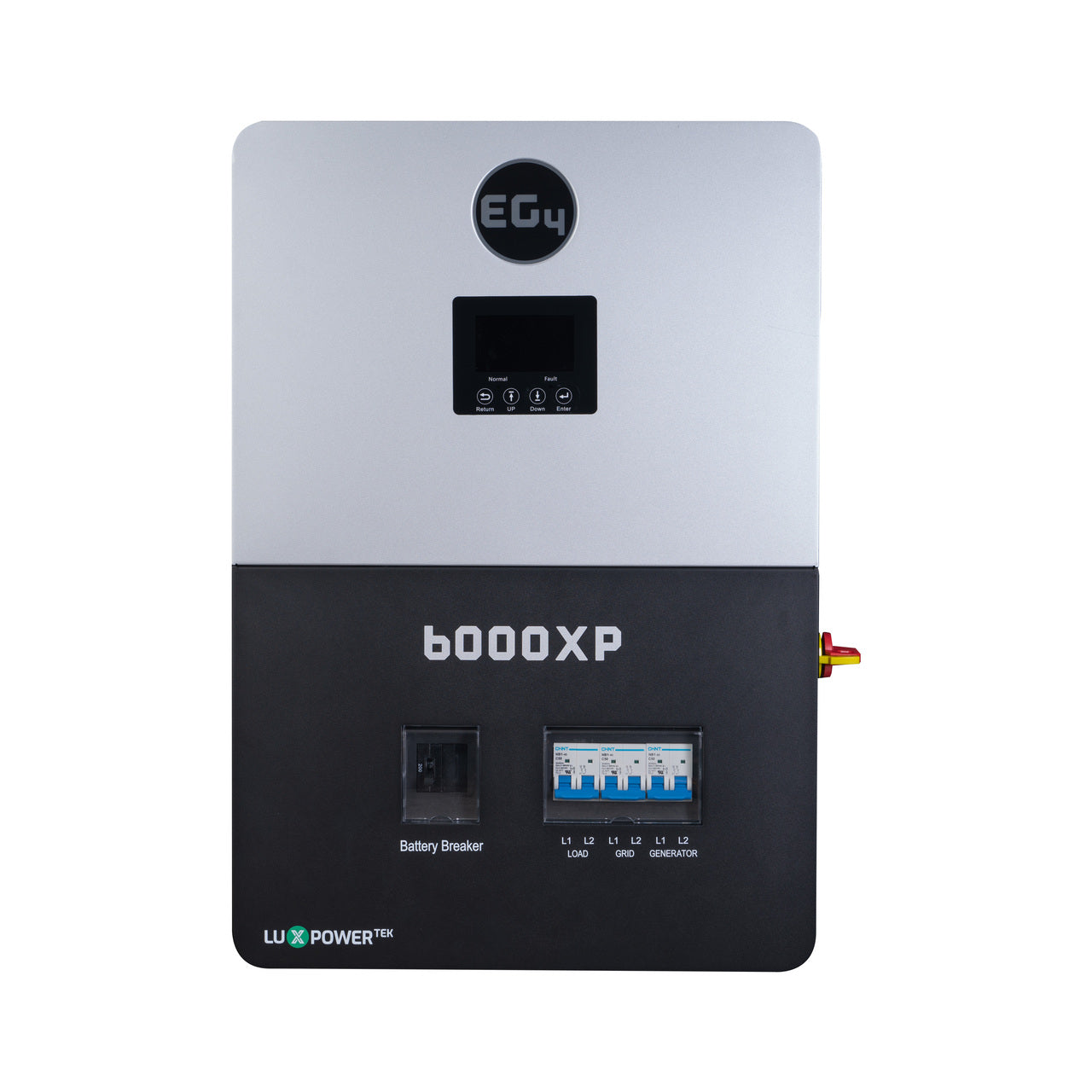

EG4 6000XP Off Grid| 8000W PV Input | 6000W Output | 48V 120/240V Split Phase | All-In-One Solar Inverter
Questions about this product
Questions about this product
What batteries are compatible with the 6000xp?
HINAESS: Hi-5, PowerGem, PowerGem Plus, PowerWave, EG4: EG4LL, LifePower4, HomeGrid: PowerBaseMateLV, Pylon: US2000, US2000C, US3000, US3000C, UP5000, UZ Energy: L051100-A, L051100-A1, L051100-B, L051100-D, Pytes: E-BOX-48100R, E-BOX 4850, V5, Renogy: LV series (compatible), Sunwoda: SunESS, Atrix, Fortress Power: LV series (compatible), GSL Energy: GSL051100A-B-GBP2, GSL051200A-B-GBP2, GSL051280A-B-GBP2, GSL200L-2P-48BA03EAI, GSL-8I-100J, GSL-6I-200, GSL-5I-280, GSL5000U, GSL10000U, GSL-W-15K, GSL-W-20K • BigBattery: B-LFP48-52E, B-LFP48-100E, B-LFP48-200E, B-LFP48-172E, Powerline-5, Powerline-10, B-LFP48-100PW, B-LFP48-172PW, B-LFP48-200PW, BSLBATT: LV series (compatible), Volthium: Rackmount 51.2V 100Ah, Rackmount 51.2V 200Ah, Meritsun: Powerwall 5 kWh, 7 kWh, 10 kWh, 15 kWh, and Rack 48V 50Ah, 100Ah, 200Ah
What solar input can I connect to the 6000XP?
Two independent MPPTs. DC input range 100–480 V. MPP window 120–385 V. 17 A usable input current per MPPT, 25 A short-circuit per MPPT. Up to 8000 W utilized PV (recommend up to 10,000 W array). Use PV disconnects and check string Voc at cold temps.
What is the operating temperature range?
Operating 0–45°C. Storage −15–60°C. Typical noise <58 dB, so install in a ventilated indoor space.
How fast is the transfer time and does it support AC coupling or a generator?
Transfer time is <15 ms for a single unit (<30 ms when paralleled). Supports AC or generator input up to 50 A and AC-coupling with an existing grid-tie array when configured.
Delivery and shipping
Delivery and shipping
Orders are typically processed within 1 to 2 business days from the time of purchase, excluding holidays and weekends.
Shipping times and cost will vary depending on the product and your location.
On average:
Ontario and Quebec: 2 to 5 business days
Western Canada: 4 to 7 business days
Atlantic provinces: 4 to 8 business days
Northern or remote areas: Contact us to confirm
****FREE SHIPPING****
Features:
The EG4 6000XP is a cutting-edge 48V split-phase, off-grid inverter and charger, designed to revolutionize your energy needs. With an impressive 8kW of PV input capacity and an efficient 6kW continuous power output, it also serves as a battery 140A charger. What sets it apart is its scalability - you can parallel up to 16 units for an impressive 96kWs of output power while controlling multiple stations and units seamlessly using our advanced EG4 monitoring software.
Performance Components
-
6000W rated output power
-
Parallel up to 16 units for 96kWs of output power
-
Built-in Switchgear for reduced installation costs and enhanced safety
- Save up to $300 with built-in breakers, disconnects and more!
-
Transformer-Free Design
-
Dedicated Generator Connection
-
Inverter, AC Charger, and Solar Charge Controller
All-In-One
-
Everything needed to get started
-
Simple to install, easy to manage
-
Manages power from energy storage systems, and grid simultaneously
-
120/240V split phase
Efficiency
-
MPPT Efficiency 99%
-
Outperforms similar-sized competitors by an average of 7%
-
Battery Charging Efficiency 93%
-
Battery Discharging Efficiency 93%
-
50W Idle Consumption (with battery)
Monitoring
-
EG4 Monitoring App
-
Wi-Fi/4G/LAN
-
RS485
Comprehensive Certifications
-
-
UL 1741
-
Ingress Protection Rating: IP20
-
SPECIFICATIONS
DC Input Voltage Range: 100-480 VDC
Number of MPPTs: 2
MPPT Efficiency: 99%
Dimensions: 18×25.5×5.25 in (45.7×64.8×13.2cm)
Weight: 52.9 lbs. (24kg)
Parallel: Up to 16 units for a max of 96kWs of continuous AC power.
