  • Sale
  • $29,900.00
Shipping calculated at checkout.

Everything you need in a completely integrated system for your off-grid cottage or homestead. All the power you need to power all your appliances, electronics, lights, pumps and more!

SOLAR OUTPUT POWER: 12000W
MAX ALLOWED PV POWER   6500W + 6500W = 13,000W
MAX PV POWER DELIVERED TO BATTERY & AC OUTPUTS12000W
MAX DC VOLTAGE 500V @18A, 450V@20A
MPPT VOLTAGE RANGE 150-425V
STARTING VOLTAGE 175V
NUMBER OF MPPT2
MAX SOLAR STRINGS PER MPPT2
MAX DC CURRENT PER MPPT (SELF LIMITING)20A@300V, 18A@400V
MAX AC COUPLED INPUT (MICRO/STRING INVERTERS)9,600W / 9,600W
AC OUTPUT POWER9000W On Grid & 9000W Off Grid
CONNECTIONS120/240/208V split phase

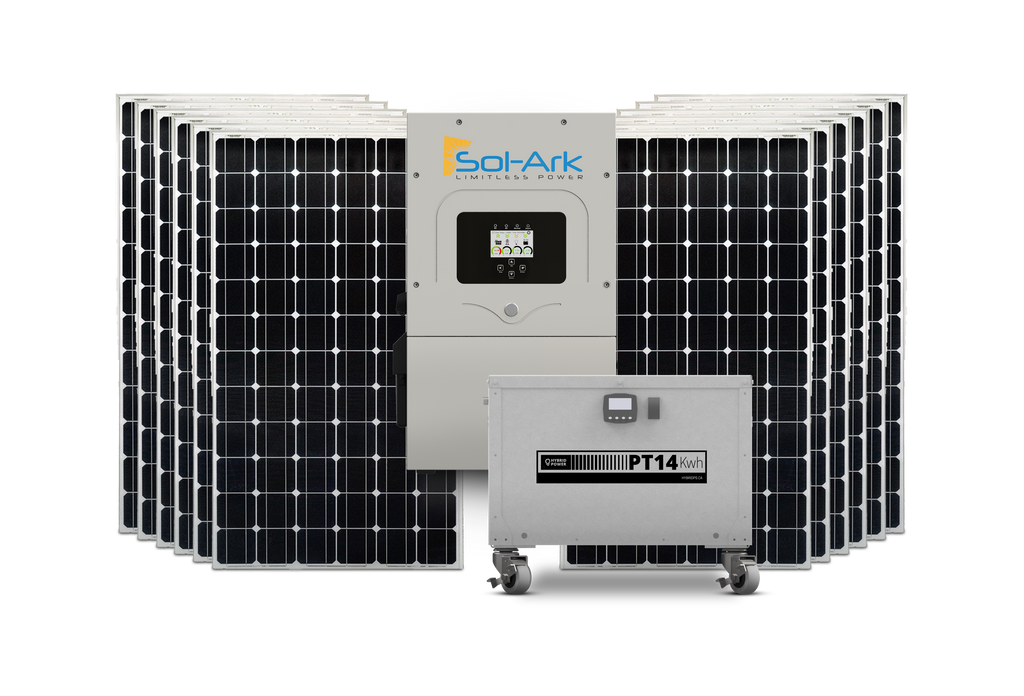

Package Component:

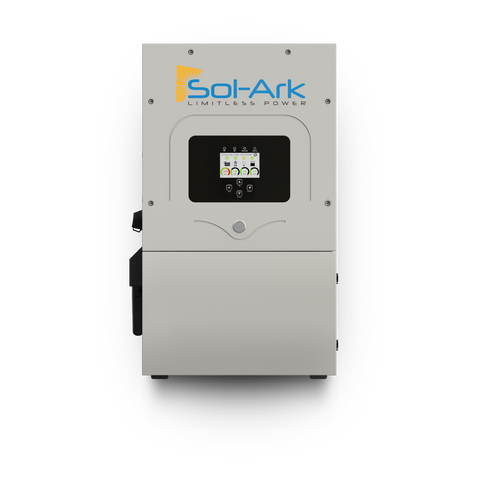

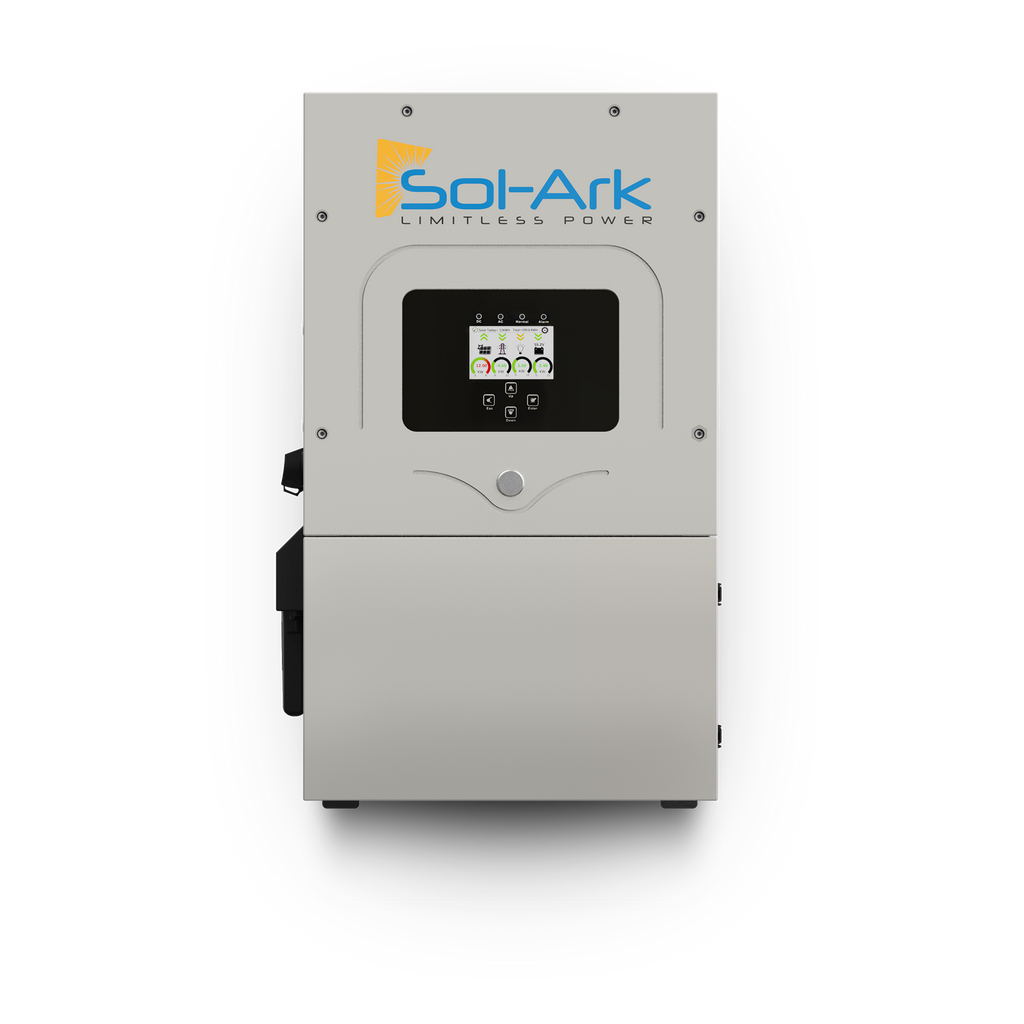

Qty 1 - Sol-Ark 12k

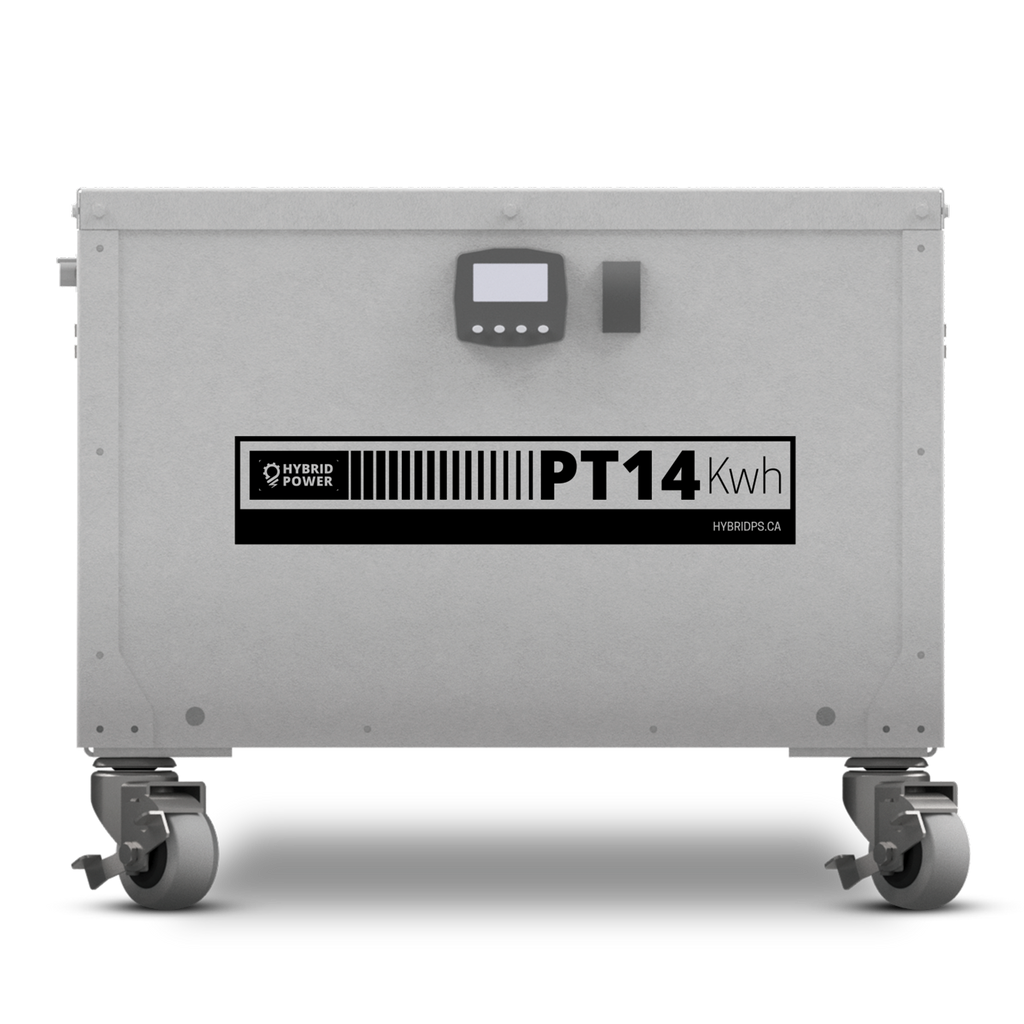

Qty 1 -  14kwh Lithium Battery

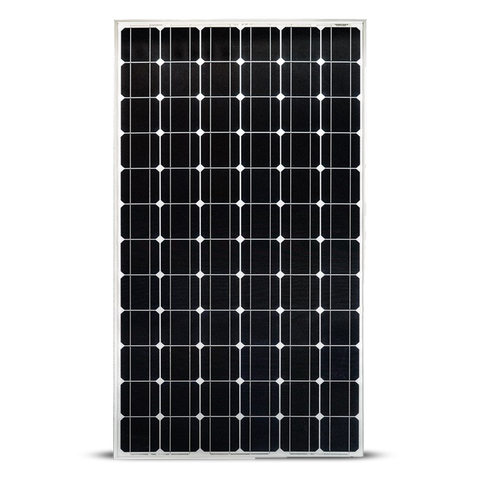

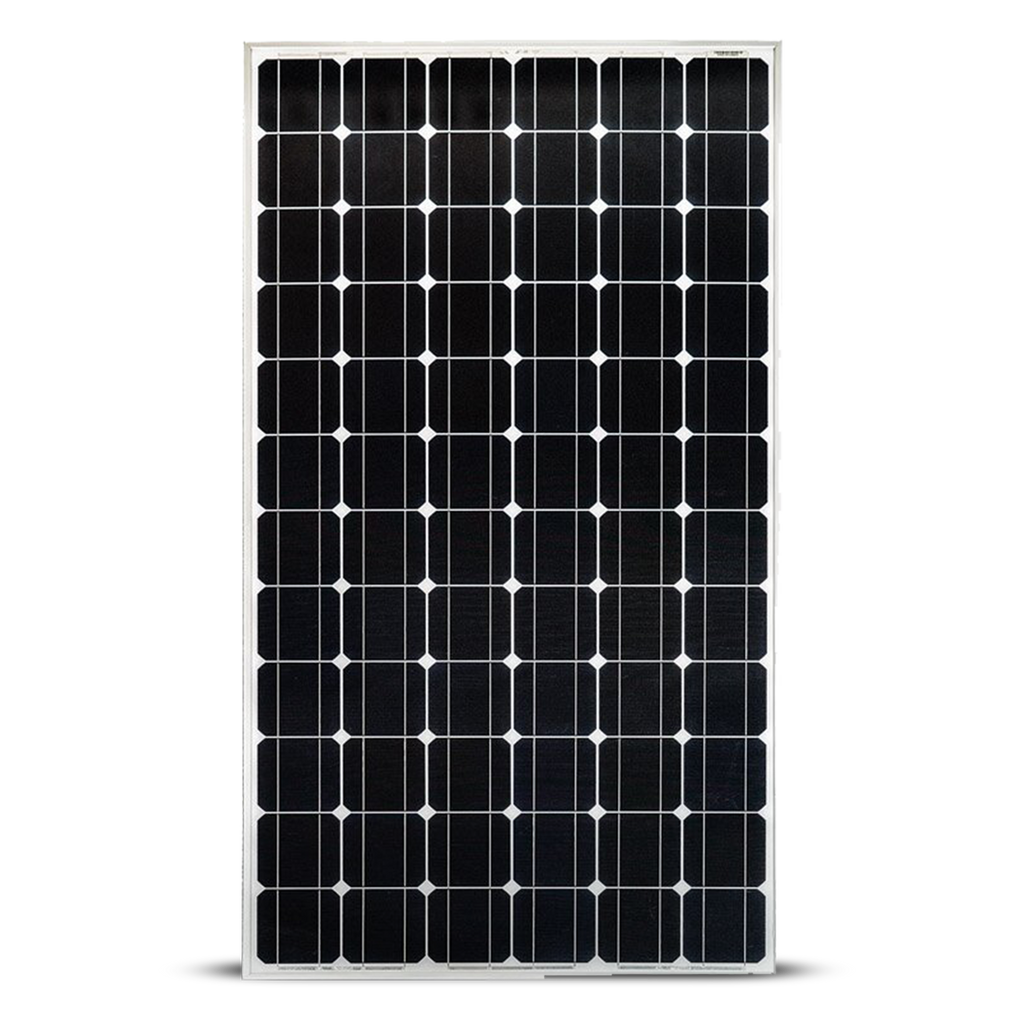

Qty 14 - solar panels 340w Mono Perc All Black CSI

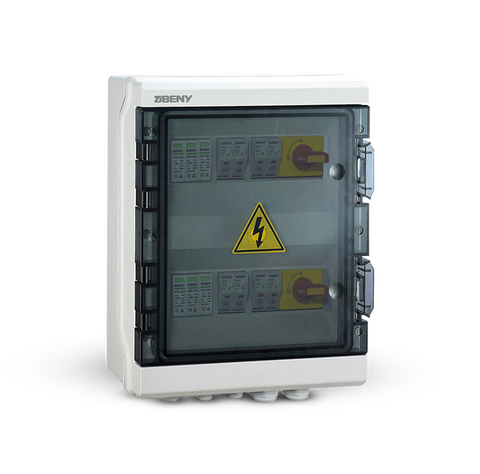

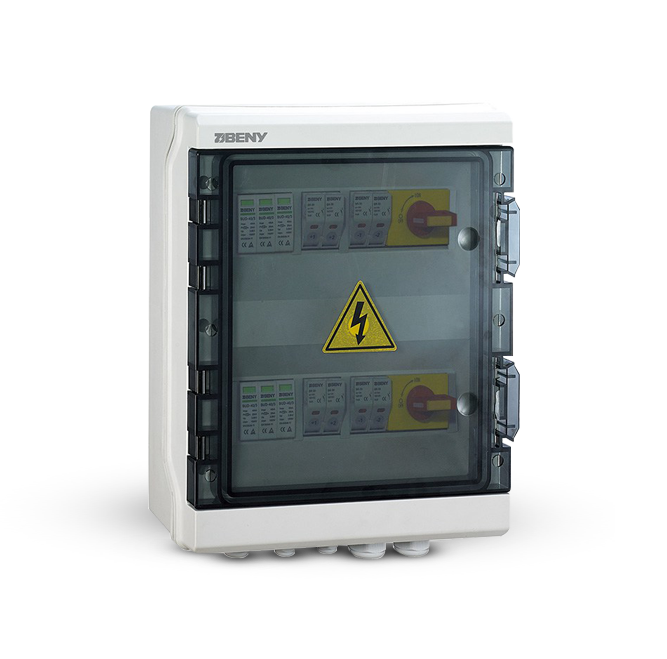

Qty 1 - Circuit Solar Combiner Box
